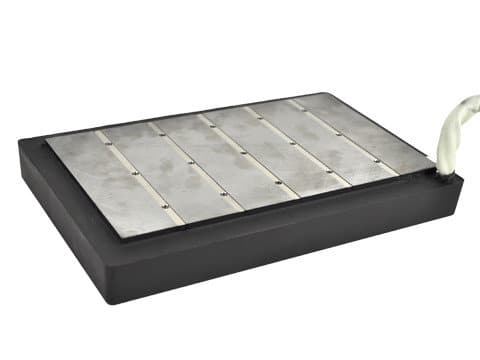

BLSM-2F

Part of the Linear Servo Motors series

Motor Type: Ironcore (High Force)
Continuous Force (100% Duty): 200 lbs888 N
Peak Force (10% Duty): 600 lbs2664 N

Request a quote Datasheet (PDF)

Overview

The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.

Equivalent to Baldor motor LMIC2F.

Datasheet

Full specifications and performance data

Download PDF

Specifications

Motor Type	Ironcore (High Force)
Resistance	2.8 ohms
Inductance	24 mH
Electrical Time Constant	8.5 msec
Motor Constant	16 lbs/√watt70 N/√watt
Force Constant	26 lbs/amp115 N/amp
Back EMF	2.9 V/ips115 V/m/sec
Continuous Force (100% Duty)	200 lbs888 N
Continuous Power (100% Duty)	163 watts
Continuous Current (100% Duty)	7.7 amps
Peak Force (10% Duty)	600 lbs2664 N
Peak Power (10% Duty)	1467 watts
Peak Current (10% Duty)	23 amps
Electrical Cycle Length	1.4 in34 mm
Coil Weight	38 lbs17 kg
Coil Length	11.8 in299 mm
