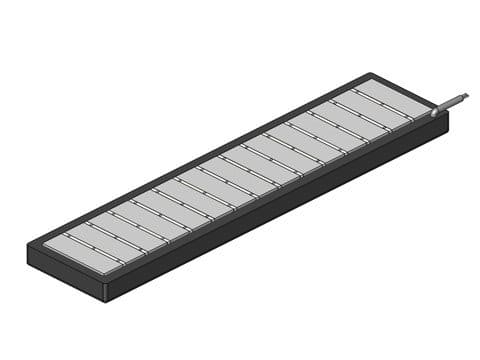

BLSM-5E

Part of the Linear Servo Motors series

Motor Type: Ironcore (High Force)
Peak Force (10% Duty): 3.6 lbs16 N
Coil Weight: 0.2 lbs0.1 kg

Request a quote

Overview

The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.

Equivalent to Baldor motor LMIC5E.

Specifications

Motor Type	Ironcore (High Force)
Resistance	2.7 ohms
Electrical Time Constant	0.2 msec
Motor Constant	0.4 lbs/√watt1.9 N/√watt
Force Constant	0.7 lbs/amp3.1 N/amp
Back EMF	0.08 V/ips3.1 V/m/sec
Peak Force (10% Duty)	3.6 lbs16 N
Peak Power (10% Duty)	99 watts
Peak Current (10% Duty)	5.1 amps
Electrical Cycle Length	1.4 in34 mm
Coil Weight	0.2 lbs0.1 kg
Coil Length	2.9 in74 mm
