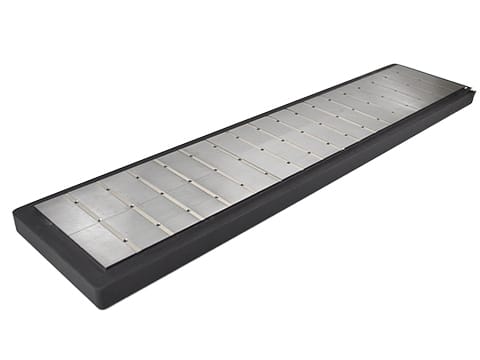

BLSM-6F

Part of the Linear Servo Motors series

Motor Type: Ironcore (High Force)
Continuous Force (100% Duty): 600 lbs2700 N
Peak Force (10% Duty): 1800 lbs8000 N

Request a quote Datasheet (PDF)

Overview

The 3-phase brushless linear servo motors support trapezoidal commutation using integrated Hall effect sensors or sinusoidal commutation via software with encoder feedback. Any standard 3-phase brushless servo amplifier can power the motor through a shielded high-flex cable. Motors ordered with the Hall effect board include a secondary high-flex commutation cable.

Datasheet

Full specifications and performance data

Download PDF

Specifications

Motor Type	Ironcore (High Force)
Resistance	7.7 ohms
Inductance	75 mH
Electrical Time Constant	9.7 msec
Motor Constant	28 lbs/√watt125 N/√watt
Force Constant	78 lbs/amp347 N/amp
Back EMF	8.8 V/ips347 V/m/sec
Continuous Force (100% Duty)	600 lbs2700 N
Continuous Current (100% Duty)	7.7 amps
Peak Force (10% Duty)	1800 lbs8000 N
Peak Power (10% Duty)	4100 watts
Peak Current (10% Duty)	23 amps
Electrical Cycle Length	1.4 in34 mm
Coil Weight	110 lbs50 kg
Coil Length	34 in864 mm
