LMSS0604-2WW0

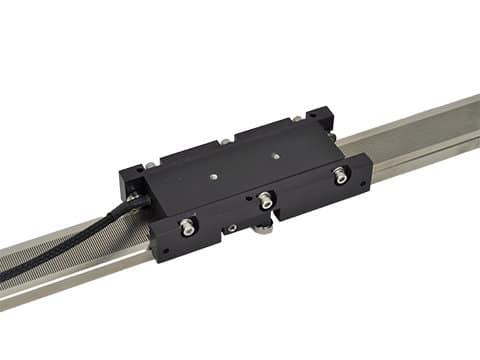

The LMSS0604-2WW0 is a 2-phase single axis linear stepper motor that generates a continuous force of 4.0 lbs [17.8 N]. It is guided by precision roller bearings along the platen. The roller bearings also help maintain the required motor air gap. Power is supplied to the motor via a 10in long cable with flying motor leads. There are mounting holes on the top of forcer to allow for payload mounting.

This forcer is designed to operate on a 1.21″ [30.75 mm] wide, 0.375″ [9 mm] thick stepped platen. Platen Model #: STP-13-XXX-R.
