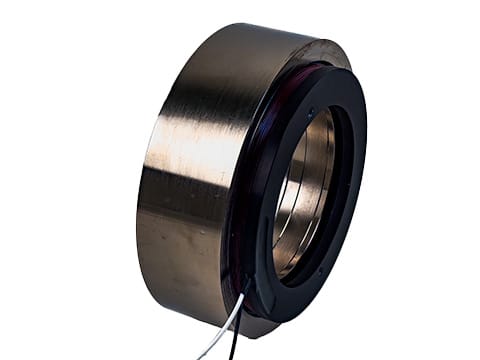

NCC01-58-300-2H

Part of the Voice Coil Actuators series

Device Type: Moving Coil
Stroke Length: 0.13 in3.2 mm
Continuous Force (100% Duty): 26 lbs116 N

Request a quote Datasheet (PDF)

Overview

Moving coil actuators do not come with a bearing system, if you would like to see actuators with a built-in bearing system please look at our moving magnet models. Or if you would like to see how we have integrated our voice coils into linear motion stages.

Datasheet

Full specifications and performance data

Download PDF

Specifications

Device Type	Moving Coil
Stroke Length	0.13 in3.2 mm
Radial Clearance	0.03 in0.8 mm
Bearing Type	None Provided
Moving Mass	9.6 oz275 g
Total Mass	30 oz860 g
Resistance @ 20C	3.3 ohms
Inductance @ 20C	6.0 mH
Electrical Time Constant	1.5 msec
Motor Constant	2.9 lbs/√watt13 N/√watt
Force Constant	5.3 lbs/amp24 N/amp
Back EMF	0.6 V/ips24 V/m/sec
Continuous Force (100% Duty)	26 lbs116 N
Continuous Power (100% Duty)	80 watts
Continuous Current (100% Duty)	4.9 amps
Peak Force (10% Duty)	78 lbs348 N
Peak Power (10% Duty)	700 watts
Peak Current (10% Duty)	15 amps
Outside Diameter	5.61 in150 mm
Housing Length	1.75 in45 mm
