STS-0213-RV
Part of the Linear Stepper Motors series
- Force
- 2.3 lbs10 g
- Bearing Type
- Roller
- # of Phases
- 2
Overview

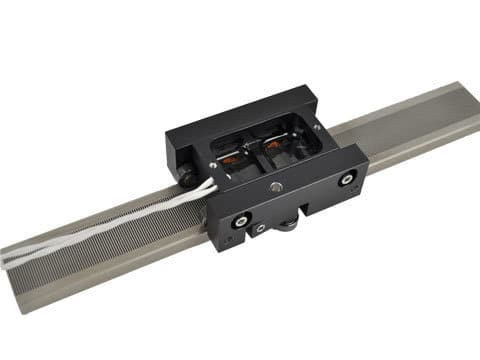

The STS-0213-RV is a 2-phase single axis linear stepper motor that generates a continuous force of 2.3 lbs [10.2 N]. It is guided by precision roller bearings along the platen. The roller bearings also help maintain the required motor air gap. Power is supplied to the motor via a 10in long cable with flying motor leads. There are mounting holes on the top of forcer to allow for payload mounting. This motor has been made to be fully vacuum compatible.
Datasheet
Full specifications and performance data
