STS-0620-RN

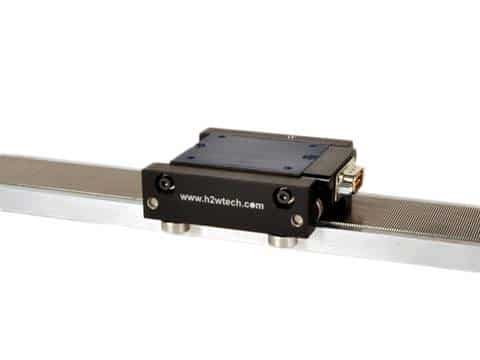

The STS-0620-RN is a 2-phase single axis linear stepper motor that generates a continuous force of 6.0 lbs [26.7 N]. It is guided by precision roller bearings along the platen. The roller bearings also help maintain the required motor air gap. Power is supplied to the motor via a 9-pin D-Sub Male connector. There are mounting holes on the top of forcer to allow for payload mounting. This is also a replacement motor for NorMag P/N 1302-2-B3 (Northern Magnetics). Baldor Motors P/N LMSS1302-2WW1 or SQ0005A00.

This forcer is designed to operate on a 1.96″ [49.8 mm] wide, 0.48″ [12.2 mm] thick stepped platen. Platen Model #: STP-20-XXX-R.
