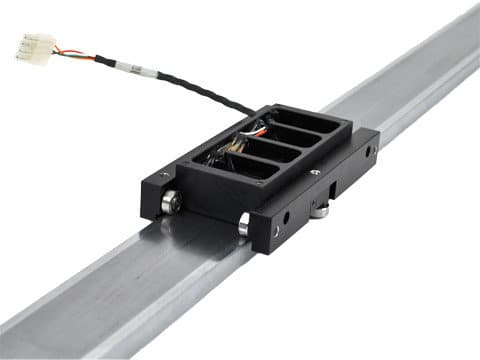

STS-1220-R

The STS-1220-R is a 2-phase single axis linear stepper motor that generates a continuous force of 11.0 lbs [48.8 N]. It is guided by precision roller bearings along the platen. The roller bearings also help maintain the required motor air gap. Power is supplied to the motor via a 7.5in long cable with a 4-pin Molex connector (P/N: 39-01-4041). There are mounting holes on the top of forcer to allow for payload mounting

This forcer is designed to operate on a 1.96″ [49.8 mm] wide, 0.47″ [11.9 mm] thick bar platen. Platen Model #: STP-20-XXX-A.
