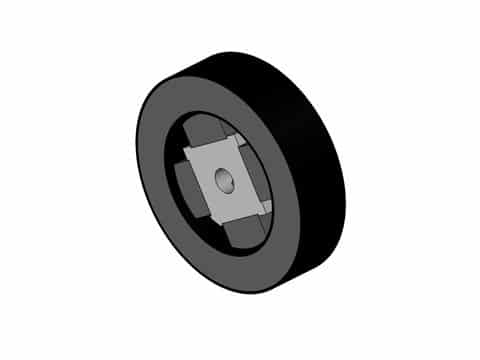

TMR-020-22-010-4X

Part of the Limited Angle Torque Motors series

Continuous Torque Range: 20°0.35 rad
Total Mass: 0.30 oz135 g
Motor Constant: 3.7 in-oz/√watt2.6 N-cm/√watt

Request a quote Datasheet (PDF)

Overview

Limited angle torque motors are designed for compact, open-loop or closed-loop servo applications requiring rotary motion within a limited angular excursion (under 180°). Unlike conventional brush and brushless motors, these torquers use a winding configuration that eliminates the need for commutation. This results in a simpler, more reliable system with fewer components that can wear or fail.

To determine your motion profile needs, use our rotary motion calculator.

Datasheet

Full specifications and performance data

Download PDF

Specifications

Continuous Torque Range	20°0.35 rad
Radial Clearance	0.02 in0.5 mm
Housed with Bearings	No
Rotor Inertia	0.43 oz-in²0.0000079 kg-m²
Total Mass	0.30 oz135 g
Resistance @ 20°C	4.5 ohms
Inductance @ 20°C	1.3 mH
Electrical Time Constant	0.29 msec
Motor Constant	3.7 in-oz/√watt2.6 N-cm/√watt
Torque Constant	8.0 in-oz/amp5.6 N-cm/amp
Back EMF	0.0059 V/rpm0.056 V/rad/sec
Continuous Torque (100% Duty)	10 in-oz7.1 N-cm
Continuous Power (100% Duty)	7 watts
Continuous Current (100% Duty)	1.3 amps
Peak Torque (10% Duty)	30 in-oz21 N-cm
Peak Power (10% Duty)	66 watts
Peak Current (10% Duty)	3.8 amps
# of Poles	4
